Model

H67601U

Product Name

WLAN 11n USB 1T1R module

Major Chipset

MT7601U

Standard

802.11b/g/n, 802.3, 802.3u

DataTransfer Rate

1,2,5.5,6,11,12,18,22,24,30,36,48,54,60, 90,120 and maximum of 150Mbps

Modulation Method

BPSK/ QPSK/ 16-QAM/ 64-QAM

Frequency Band

2.4~2.4835  GHz ISM Band

Spread Spectrum

IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)

IEEE802.11g/n:OFDM (Orthogonal rthogonal Frequency Division Multiplexing)

RF Output  Power

≥ 13dBm@11n，≥ 14dBm@11g，≥ 17dBm@11b

Operation Mode

Ad hoc, Infrastructure

 Receiver Sensitivity

11b(11Mbps) ≤ -78dBm@8%,

11g(54Mbps) ≤ -67dBm@10%,

11n-20M(mcs7) ≤ -66 dBm@10%

11n-40M(mcs7) ≤ -63 dBm@10%

Maximum Input Level

11b(11Mbps)≥ -10 dBm

11g(54Mbps) ≥ -20 dBm

11n-20M(mcs7) ≥ -20 dBm

OS  Support

Windows XP,Win7 32/64,Win8 32/64

Security

WEP, TKIP, AES, WPA,  WPA2

Interface

USB  2.0

Operating Temperature

-20~ +60° C  ambient temperature

Storage Temperature

-40 ~ 85°C   ambient temperature

Humidity

5 to 90 % maximum (non-condensing)

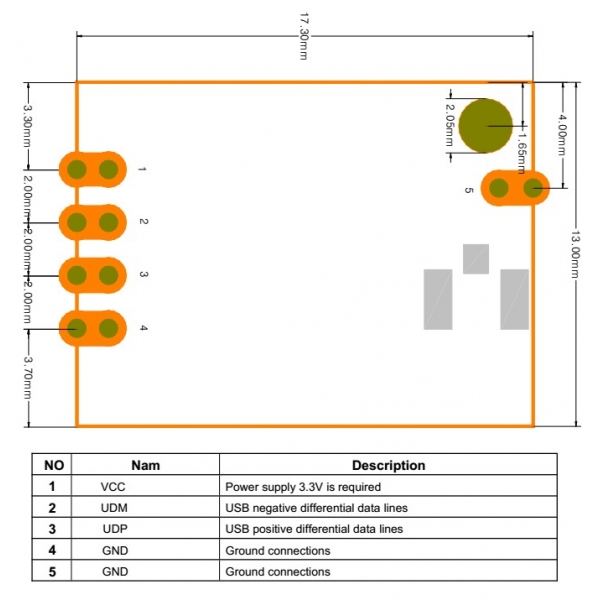

Dimension

17.3x13x2.2mm  (LxWxH)
