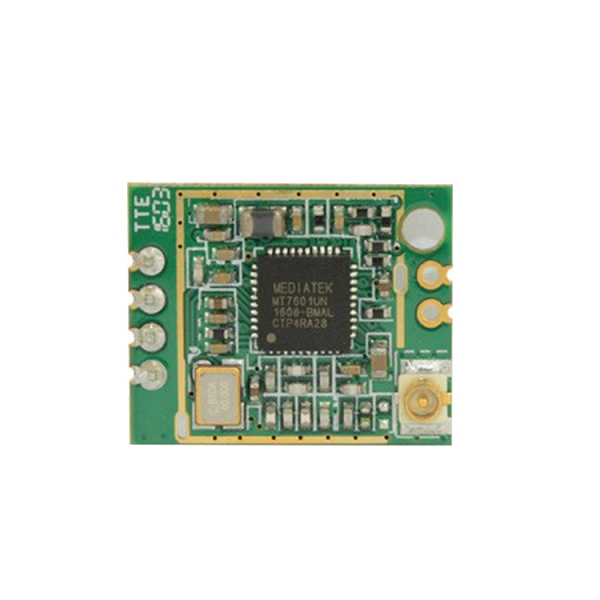

MT7601 usb无线模组 wifi模块 插针IPEX模块 150MBPS 3.3V MODULE

产品型号:ZF-H67601U
芯片:MT7601
转输数率:150MBPS
是一款邮票孔贴片wifi模组,主要应用于网络摄像机,车载,机顶盒,医疗等相关网络产品

    General Specification

    Model

    H67601U

    Product Name

    WLAN 11n USB 1T1R module

    Major Chipset

    MT7601U

    Standard

    802.11b/g/n, 802.3, 802.3u

    DataTransfer Rate



    1,2,5.5,6,11,12,18,22,24,30,36,48,54,60, 90,120 and maximum of 150Mbps

    Modulation Method

    BPSK/ QPSK/ 16-QAM/ 64-QAM

    Frequency Band

    2.4~2.4835  GHz ISM Band

    Spread Spectrum

    IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)

    IEEE802.11g/n:OFDM (Orthogonal rthogonal Frequency Division Multiplexing)



    RF Output  Power

    ≥ 13dBm@11n,≥ 14dBm@11g,≥ 17dBm@11b

    Operation Mode

    Ad hoc, Infrastructure

     Receiver Sensitivity



    11b(11Mbps) ≤ -78dBm@8%,

    11g(54Mbps) ≤ -67dBm@10%,

    11n-20M(mcs7) ≤ -66 dBm@10%

    11n-40M(mcs7) ≤ -63 dBm@10%



    Maximum Input Level

    11b(11Mbps)≥ -10 dBm

    11g(54Mbps) ≥ -20 dBm

    11n-20M(mcs7) ≥ -20 dBm

    OS  Support

    Windows XP,Win7 32/64,Win8 32/64

    Security

    WEP, TKIP, AES, WPA,  WPA2

    Interface



    USB  2.0

    Operating Temperature



    -20~ +60° C  ambient temperature

    Storage Temperature



    -40 ~ 85°C   ambient temperature

    Humidity

    5 to 90 % maximum (non-condensing)

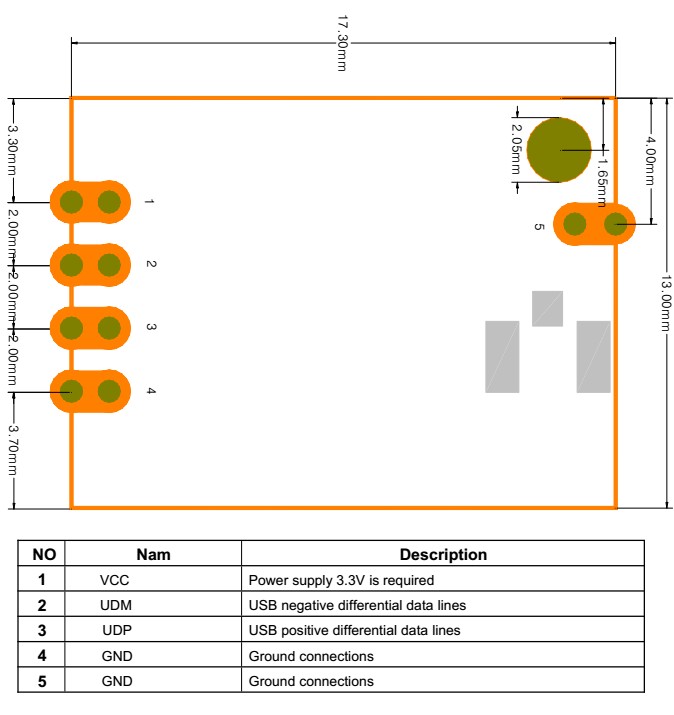

    Dimension

    17.3x13x2.2mm  (LxWxH)
